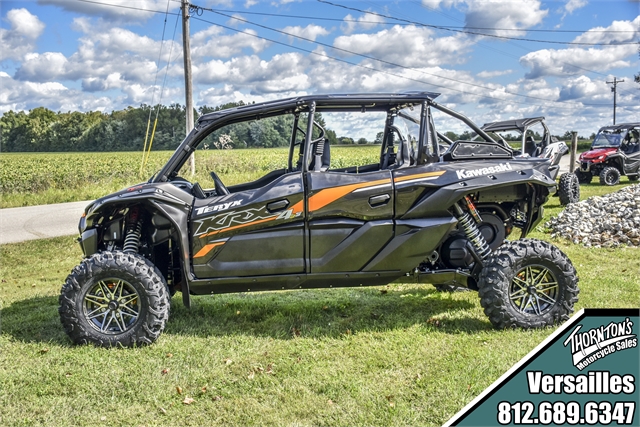

2023 Kawasaki Teryx KRX4 1000 eS  Featured

Stock #v500371
MSRP: $28,499 USD
Pricing Notes: PLUS $4,420.95 - dealer installed accessories | PLUS $2,000.00 - out of sales area surcharge | (PLUS freight/setup, taxes and document fees.)
Check Availability
Hi, my name is and I'm interested in this 2023 Kawasaki Teryx KRX4 1000 eS . I'm in the area and you can reach me at or by phone at

Available Color

  • Metallic Flat Raw Graystone / Candy Steel Furnace Orange
  • Status:
    New
  • Vehicle:
    2023 Kawasaki Teryx KRX4 1000 eS
  • VIN:
    JKARTCA12PB500371
  • Model Number:
    KRT1000APFNL
  • Color:
    Metallic Flat Raw Graystone / Candy Steel Furnace Orange
  • Stock Number:
    v500371
  • Location:
    Thornton's Motorcycle - Versailles, IN
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Diameter (in):
    10.2
  • Front Brake Diameter (mm):
    258
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    10.2
  • Rear Brake Diameter (mm):
    258
  • Rear Brake Type:
    Dual Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.62
  • Bore (mm):
    92
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    11.5
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    50
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.96
  • Stroke (mm):
    75.1
  • Torque (Ft Lbs):
    76.7
  • Torque (Nm):
    104
  • Torque RPM:
    7000
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    4
  • Seat Height (in):
    31.9
  • Seat Height (mm):
    810
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    159
  • Bed Capacity (lbs.):
    351
  • Bed Height (in):
    9.1
  • Bed Height (mm):
    231.1
  • Bed Length (in):
    14.6
  • Bed Length (mm):
    370.8
  • Bed Width (in):
    33.1
  • Bed Width (mm):
    840.7
  • Cargo Bed Material:
    Polyethylene
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    5

SUSPENSION

  • Adjustment Type:
    Shock Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Brand Name:
    Fox® Podium
  • Front Suspension Type:
    Independent Double Wishbone
  • Front Travel (in):
    18.6
  • Front Travel (mm):
    472.4
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox® Podium
  • Rear Suspension Type:
    Independent
  • Rear Travel (in):
    21.1
  • Rear Travel (mm):
    535.9

TECHNICAL SPECIFICATIONS

  • Front Tread Width (in):
    59.4
  • Front Tread Width (mm):
    1510
  • Fuel Capacity (gal):
    10.6
  • Fuel Capacity (l):
    40
  • Ground Clearance (in):
    15.2
  • Ground Clearance (mm):
    386.1
  • Height (in):
    76.2
  • Height (mm):
    1935.5
  • Length (ft):
    13.11
  • Length (ft/ft):
    13
  • Length (ft/in):
    1.3
  • Length (in):
    157.3
  • Length (mm):
    3995
  • Payload Capacity (kgs):
    454
  • Payload Capacity (lbs):
    1000
  • Rear Tread Width (in):
    58.3
  • Rear Tread Width (mm):
    1480
  • Turning Radius (ft):
    23.3
  • Wet Weight (kg):
    955.2
  • Wet Weight (lbs):
    2105.8
  • Wheelbase (in):
    125.8
  • Wheelbase (mm):
    3195
  • Width (in):
    68.1
  • Width (mm):
    1730

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® Carnivore
  • Front Tire Diameter (in):
    31
  • Front Tire Width:
    10
  • Front Wheel Diameter:
    15
  • Rear Tire (Full Spec):
    Maxxis® Carnivore
  • Rear Tire Diameter (in):
    31
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Aluminum
